● Category:
● Brand Name: Farm Tractor
● Dimension (mm): 4285×1910×2810
● Operating Weight (kg): 3710
● Origin: China
| Model | TK904 | TK1004 | ||
| Type | 4×4 | 4×4 | ||
| Overall Dimension (mm) |
L×W×H | 4285×1910×2810 | 4285×1910×2810 | |
| Tread | Front Wheel | 1450 | 1450 | |
| Rear Wheel | 1530 (usual),1630,1730,1830 | 1530 (usual),1630,1730,1830 | ||
| Wheel Base | 2273 | 2273 | ||
| Min. Ground Base | 335 (the bottom of front driving alxe) | |||
| Min. Usage Mass(kg) | 3580 | 3710 | ||

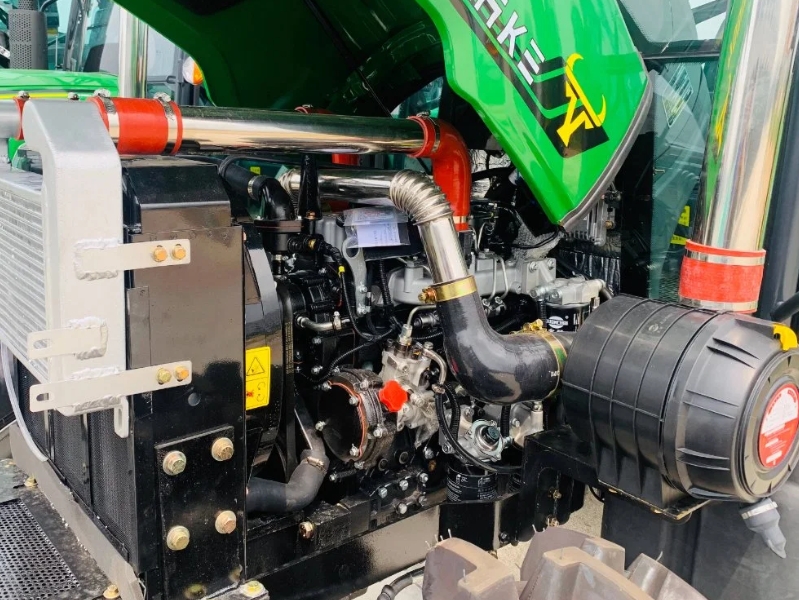

| Engine | Model | Quanchai4110 | Quanchai4110 | |
| Type | Vertical, water cooled, 4-stroke, turbocharged | |||
| Rated Power(kw) | 66.2 | 73.5 | ||
| Rated Rev.(r/min) | 2300 | 2300 | ||
| Fuel | Diesel Oil | |||
| Tire | Front Wheel | 8.3-24 | ||
| Rear Wheel | 14.9-30 | |||
| Clutch | Dry-friction, Dual stage | |||
| Steering | Hydraulic type | |||
| Transmission Box | 10F+10R Shuttle Shift | |||
| Suspension Type | Post Positioned Three-point Suspension Catalogue II | |||
| PTO | Type and Rev.(r/min) | Post-position, independent, 540/760 | ||
| Spline Size | φ38 Rectangle Spline with 8 teeth | |||
