● Category:

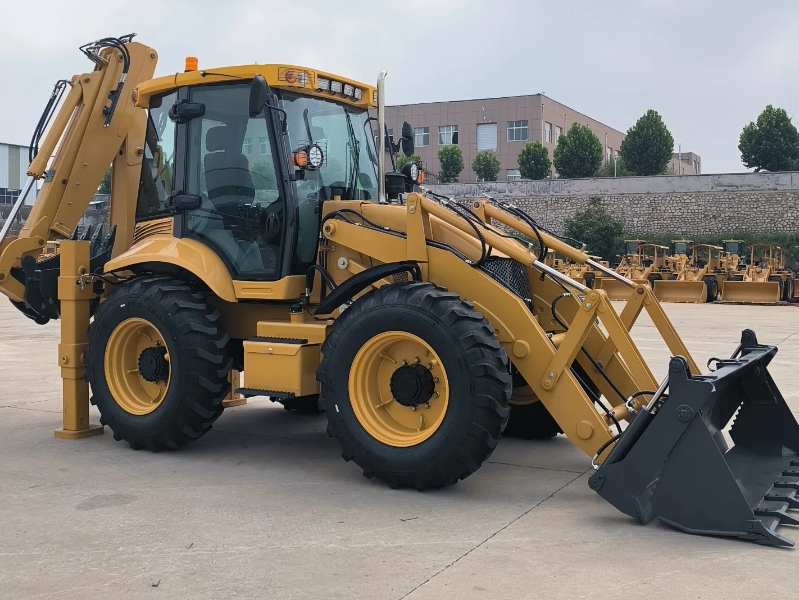

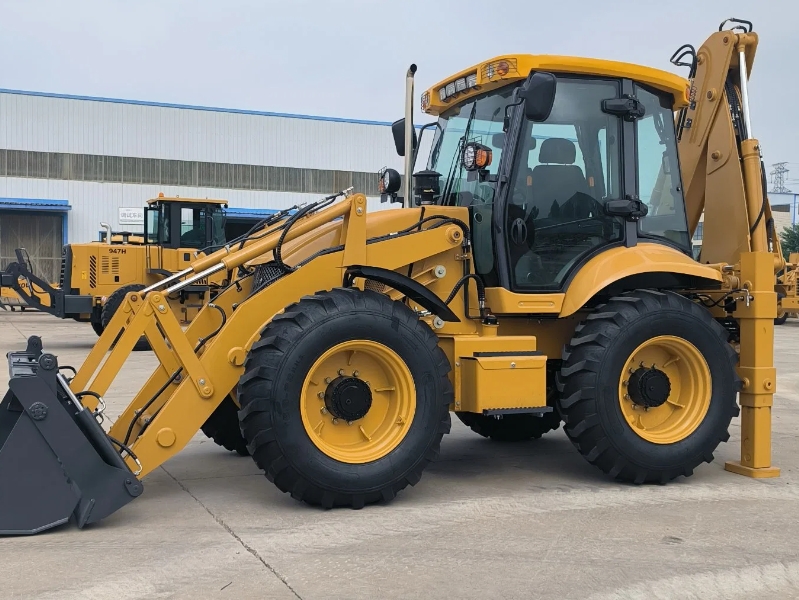

● Brand Name: Backhoe Loader
● Dimension (mm): 6450*2650*3120
● Operating Weight (kg): 9500
● Origin: China
| 1 | Total length(bucket at ground) | 6450±80mm | |
| 2 | Total width | 2650±20mm | |
| 3 | Bucket width | 2620mm | |
| 4 | Total height (cabin top) | 3120±10mm | |
| 5 | Total height (digging boom top) | 3940 ±20mm | |
| 6 | Wheel base | 2335±10 mm | |
| 7 | Wheel tread | 2139 ±10mm | |
| Load main technical parameter | |||
| 1 | Rated load | 2500KG | |
| 2 | Operating weight | 9500kg | |
| 3 | Rated bucket capacity | 1.2m³ | |
| 4 | Max. Dumping height (41o dumping angle) | 3050±50 mm | |
| 5 | Dumping distance | 870±20 mm | |
| 6 | Turning radius | Tires outside | 5750±50mm |
| Digging main technical parameters | |||
| 1 | Rated digging bucket capacity | 0.3m³ | |
| 2 | Max. Digging depth | 3820±20 mm | |
| 3 | Max. Digging radius | 5345±20mm | |
| 4 | Max. Loading height | 3740±20mm | |
| 5 | Max. Digging force | 5100kgf | |
| 6 | Max.Digging height | 5470 ±20mm | |
| 7 | Lifting force at Max. Digging radius) | 1220kg | |
| Engine | |||
| 1 | Engine model | YC4A105Z-T20 | |
| 2 | Cooling type | Water cooling | |
| 3 | Rated power | 75 (kW) | |
| 4 | Displacement | 4.8(L) | |
| 5 | Rated speed | 2200(r/min) | |
| 6 | Max. Torque | 400(N.M) | |
| 7 | Manufacturer | YUCHAI | |
| Transmission | |||
| 1 |
Hydraulic torque convertor | Model | 315 |
| Cooling way | Pressured oil circle | ||
| 2 | Gearbox | Model | 28 |
| Type | Mechanically Operated Hydraulic Synchronized Shift | ||
| 3 | Driving axles | Model | WZL100 |
| 4 | Gear shift | Forward 4 Backward 4 | |
| 5 | Speed(F/R)km/h | Forward1 - 5 km/h Forward2 - 10 km/h Forward3 - 18 km/h Forward4 - 32 km/h Backward1- 5 km/h Backward2 - 10 km/h Backward3 - 18 km/h Backward4 - 32 km/h | |
| 6 | Tyres model | 16.9-28 | |
| Hydraulic system | |||
| 1 | Working pump displacement | 63ml/r | |
| 2 | Working pump pressure | 20Mpa | |
| 3 | Diverter model | BZZ5-250 | |
| Digging attachments(hydraulic hammer) | |||
| 1 | Rod diameter mm | 68-70 | |
| 2 | Working pressure Mpa | 11-14 | |
| 3 | Impact frequency | 500-900 | |
| 4 | Flow scope L/min | 25-45 | |
| 5 | kinetic energy KN | 49 | |
| Oil capacity | |||
| 1 | Hydraulic oil tank | 125 | |
| 2 | Fuel tank | 125 | |
