● Category:

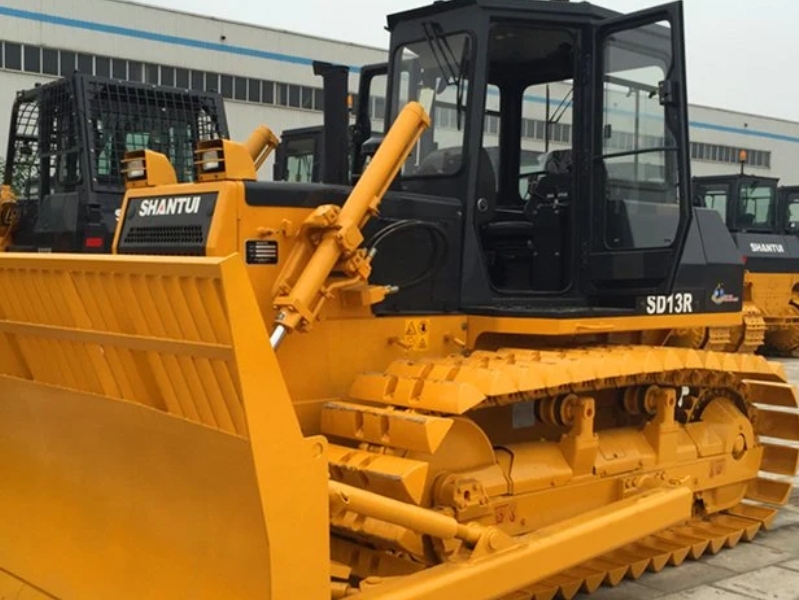

● Brand Name: Bulldozer
● Dimension (mm): 4492*3185*2950
● Operating Weight (kg): 13700
● Origin: China
| Parameter name | SD13 (Standard version) | SD13S (Wetland version) | SD13R (Environmental sanitation version) | SD13C (Coal version) |
| Performance parameters | ||||
| Operating weight (Kg) | 13700 | 14900 | 15200 | 13900 |
| Ground pressure (kPa) | 53.8 | 38.4 | 39.2 | 54.6 |
| Engine | ||||
| Engine model | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) | SC8D143G2B1(China-II)/SC8DK(China-III) |
| Rated power/rated speed (kW/rpm) | 105/1900 | 105/1900 | 105/1900 | 105/1900 |
| Overall dimensions | ||||
| Overall dimensions of machine (mm) | 4492*3185*2950 | 4492*3510*3000 | 4492*3510*3000 | 4492*3700*2950 |
| Driving performance | ||||
| Forward speed (km/h) | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 | F1:0-3.2 F2:0-5.9 F3:0-9.8 |
| Reversing speed (km/h) | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 | R1:0-3.9 R2:0-7.1 R3:0-11.9 |
| Chassis System | ||||
| Center distance of track (mm) | 1880 | 1880 | 1880 | 1880 |
| Width of track shoes (mm) | 460 | 700 | 700 | 560 |
| Ground length(mm) | 2365 | 2365 | 2365 | 2365 |
| Tank capacity | ||||
| Fuel tank (L) | 300 | 300 | 300 | 300 |
| Working device | ||||
| Blade type | Straight tilting blade | Straight tilting blade | Sanitation blade | Coal blade |
| Digging depth (mm) | 590 | 590 | 590 | 590 |
| Ripper type | Three-shank | -- | -- | -- |
| Ripping depth (mm) | 567 | -- | -- | -- |
