● Category:

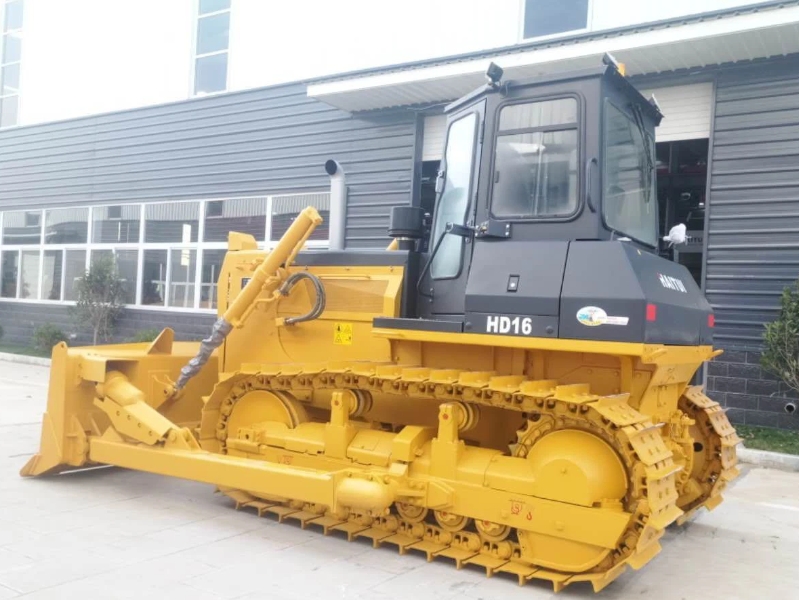

● Brand Name: Bulldozer
● Dimension (mm): 5262×4150×3074
● Operating Weight (kg): 17000
● Origin: China
| Overall | Dimension | 5262×4150×3074 mm | ||
| Operating Weight | 17000 kg | |||
| ENGINE | Model | Weichai WD10G178E25 | ||
| Type | Water-cooled, in-line, 4-stroke,direct injection | |||
| Number of Cylinders | 6 | |||
| Bore × Stroke | Φ126×130 mm | |||
| Piston Displacement | 9.726 L | |||
| Rated Power | 131 KW (178HP) @1850 rpm | |||
| Max Torque | 765 N·m @1300 rpm | |||
| Fuel Consumption | 214 g/kW·h | |||
| TRANSMISSION SYSTEM | Torque Converter | 3-element, 1 stage, 1 phase | ||
| Gearbox | Planetary gear type, power-shift, forced lubrication | |||
| Central Drive Shaft | Spiral bevel gear, single-stage speed reduction, splash lubrication | |||
| Steering clutch | Wet,multi-disc, spring loaded, hydraulically separated, hydraulic control | |||
| Steering brake | Wet type,floating band structure,foot brake with hydraulic booster | |||
| Final drive | 2-stage speed reduction of spur gear, splash lubrication | |||
| TRAVEL SPEED | Gear | 1st | 2nd | 3rd |
| Forward | 0~3.29 km/h | 0~5.82 km/h | 0~9.63 km/h | |
| Reverse | 0~4.28 km/h | 0~7.59 km/h | 0~12.53 km/h | |
| UNDERCARRIAGE SYSTEM |
Type | Sprayed beam, suspended structure of equalizer | ||
| No. of Carrier Rollers | 2 each side | |||
| No. of Track Rollers | 6 each side | |||
| No. of Track Shoes | 37 each side | |||
| Track Shoe type | Single Grouser | |||
| Width of Track shoe | 510 mm | |||
| Pitch | 203.2 mm | |||
| Track Gauge | 1880 mm | |||
| Ground Pressure | 0.067 Mpa | |||
| HYDRAULIC SYSTEM | Max Pressure | 14 Mpa | ||
| Pump Type | Gear Pump | |||
| Displacement | 243 L/Min | |||
| Bore of Working Cylinder | 110 mm × 2 | |||
| BLADE |
Blade Type | Straight-tilt Blade | Angle Blade | Semi-U-blade |
| Blade Capacity | 4.5 m³ | 4.3 m³ | 5 m³ | |
| Blade Width | 3388 mm | 3970 mm | 3556 mm | |
| Blade Height | 1150 mm | 1040 mm | 1120 mm | |
| Max Drop Below Ground | 540 mm | 540 mm | 530 mm | |
| THREE SHANK RIPPER | Max digging depth | 572 mm | ||
| Max lift above ground | 592 mm | |||
| Weight of 3-shank ripper | 1667 kg | |||
