Product classification
Product classification
● Category:
● Brand Name: Semi-trailer
● Dimension (mm): 7000 * 2500 * 2500
● Operating Weight (kg): 7500
● Origin: China

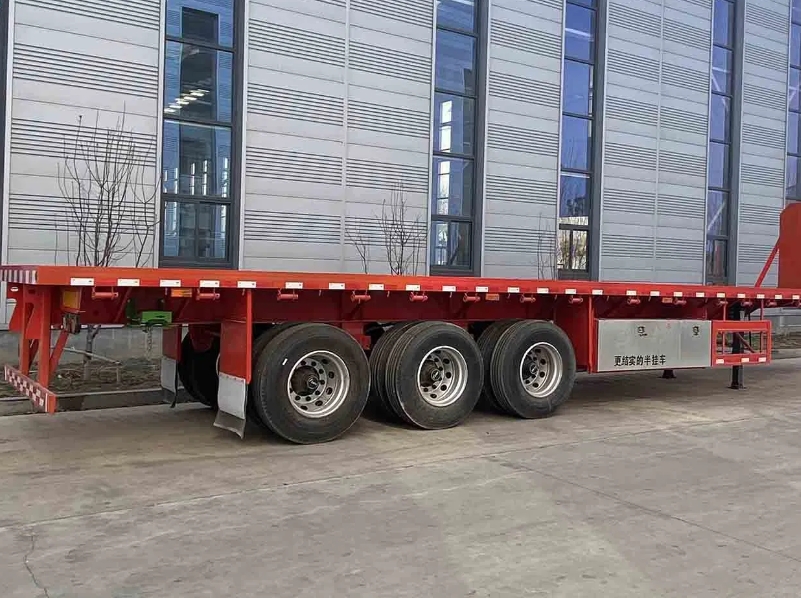

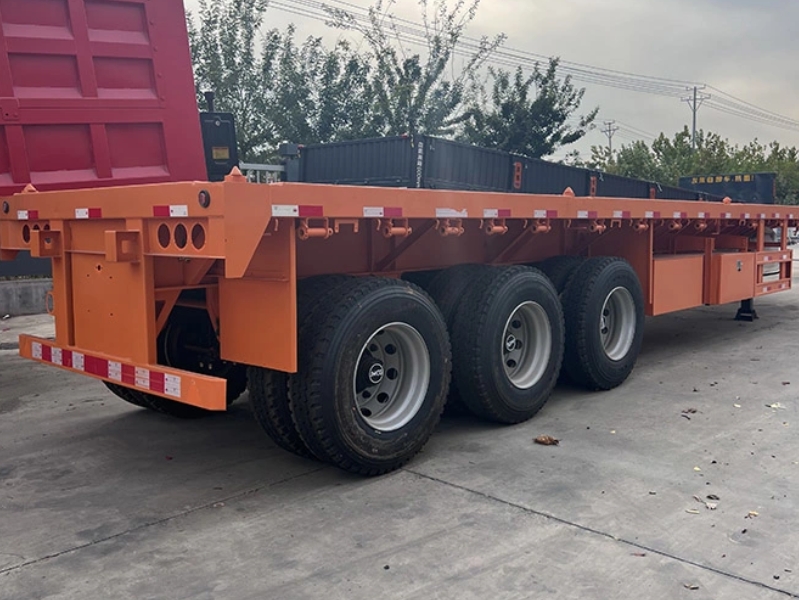

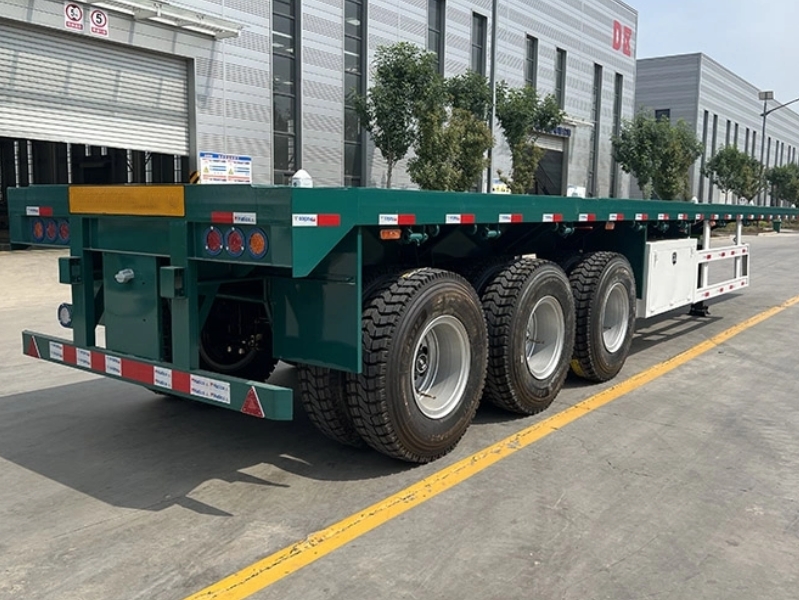

| 20FT FLATBED SEMI TRAILER | 40FT FLATBED SEMI TRAILER | 45FT FLATBED SEMI TRAILER |
| Brand: VEHICLE MASTER | Brand: VEHICLE MASTER | Brand: VEHICLE MASTER |
| 2 Axles/3 Axles | 2 Axles/3 Axles /4 Axles | 3 Axles /4 Axles |
| 20ft container or cargo loading | 1*40ft/2*20ft Container or cargo loading | 1*40ft/1*45ft container or cargo loading |
| Loading Capacity: 20 - 60 Tons | Loading Capacity: 30 - 80 Tons | Loading Capacity: 30 - 80 Tons |
| Gooseneck Type: Yes | Gooseneck Type: Yes | Gooseneck Type: Yes |
| Tandem Type: Yes | Tandem Type: Yes | Tandem Type: Yes |
| Main Beam | ||
| Material: Q345/T700 | Material: Q345/T700 | Material: Q345/T700 |
| Upper Plate Thickness: 12mm | Upper Plate Thickness: 16mm | Upper Plate Thickness: 16mm |
| Middle Plate Thickness: 6mm | Middle Plate Thickness: 10mm | Middle Plate Thickness: 10mm |
| Lower Plate Thickness: 14mm | Lower Plate Thickness: 18mm | Lower Plate Thickness: 18mm |
| Height: 500mm | Height: 500mm | Height: 500mm |
| Platform Thickness: 2.5mm | Platform Thickness: 3mm | Platform Thickness: 3mm |
| Product Dimension | ||
| L 7000mm*W 2500mm*H 1570mm | L 12400mm*W 2500mm*H 1570mm | L 13950mm*W 2500mm*H 1600mm |
| Axles | ||
| 2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other |
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other |
2/3 Axles *13/16 Ton VEHICLE MASTER/FUWA/BPW/Other |
| Tire | ||
| 12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Other Brand |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Coin/Other Brand |
| Rim | ||
| 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum | 9.00*22.5 (8/12 Pieces) Steel/Aluminum |
| Leaf Spring | ||
| 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs | 90mm*13mm*10/90mm*16mm*10Pcs |
| King Pin | ||
| 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand | 50#(2")/90#(3.5") JOST/Other Brand |
| Landing Gear | ||
| 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand | 28 Ton Two Speed,JOST/Other Brand |
| Twist Lock | ||
| 4 Sets | 12 Sets | 12 Sets |
| Vehicle Painting | ||
| Electrophoresis painting | Electrophoresis painting | Electrophoresis painting |
