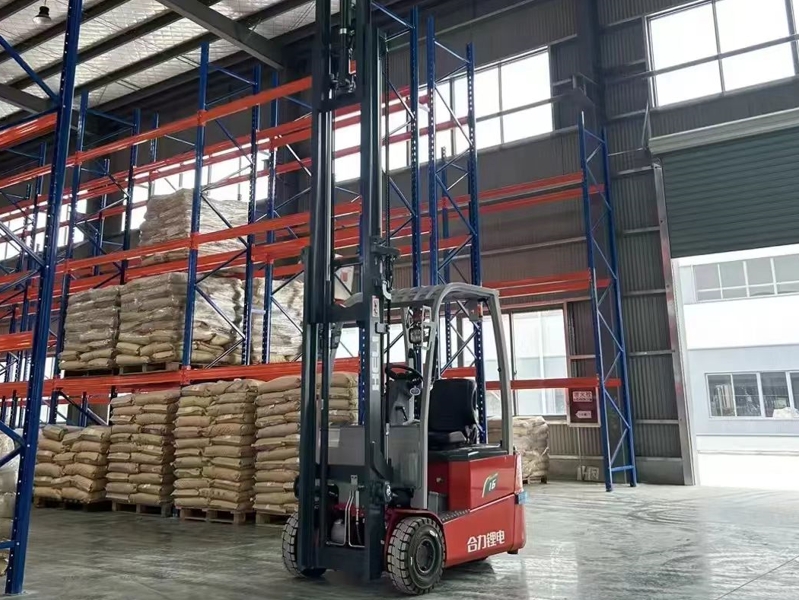

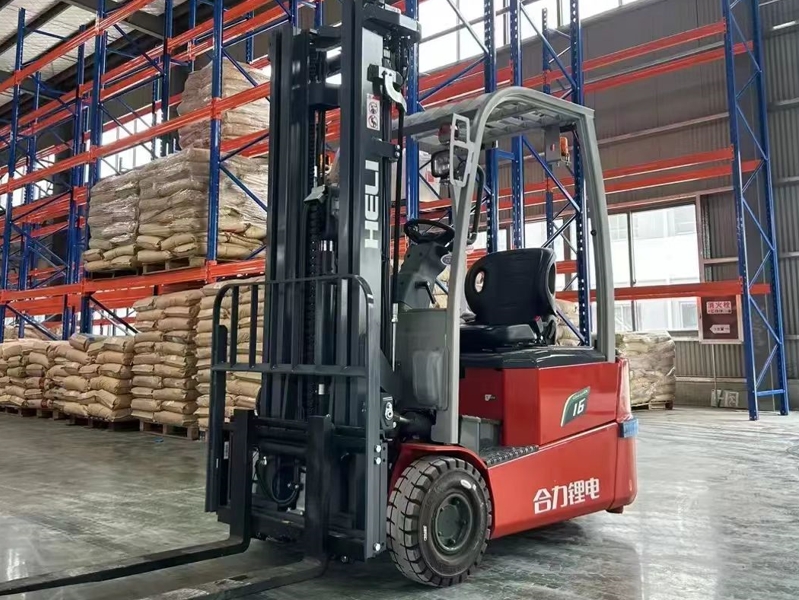

HELI 1.6ton Electric forklift - Forklift - Harbin Construction Machinery Co Limited

Specifications				Unit	FE16	FE18	FE20
1	Characteristics	Power		-	battery	battery	battery
2		Capacity		kg	1600	1800	2000
3		Center of load		mm	500	500	500
4		Lifting height		mm	3300	3300	3300
5		Free lifting height		mm	85	85	90
6		Forks L×W×H		mm	920x100x35	920x100x35	920x122x40
7		Mast tilt angle Forward/Backward		.	6/6.5	6/6.5	6/6.5
8		Min.turning radius		mm	1580	1580	1580
9		Min right angle stacking width		mm	3000	3000	3000
10		Min right angle Aisle width		mm	1780	1780	1780
11		Min.ground clearance (mast)		mm	95	95	95
12		Overhead guard height		mm	1990	1990	1990
13		Height from seat to overhead guard		mm	1000	1000	1000
14		Front overhang		mm	375	375	380
15	Performance	Max.traveling speed(loaded/unload )		km/h	13/14.5	13/14.5	12.5/14
16		Max.lifting speed(loaded/unload)		mm/s	320/450	300/450	290/400
17		Grade ability		%	15	15	15
18	Dimensions	Overall length(without fork)		mm	1954	1954	1954
19		Overall width		mm	1100	1100	1100
20		Mast extended height (with bracket)		mm	4300	4300	4300
21		Mast lowered height		mm	2165	2165	2165
22	Chassis	Tire	Front	-	18X7-8	18X7-8	18X7-8
23		Tire	Rear	-	15X4.5-8	15X4.5-8	15X4.5-8
24		Wheelbase		mm	1390	1390	1390
25		Tread width	Front/Rear	mm	940/180	940/180	940/180
26		Curb weight	None-load	kg	3150	3300	3420
27	Powertrain	Battery	Voltage/Capacity	V/Ah	48/500	48/500	48/630
28		Motor	Traveling	KW	4.5*2	4.5*2	4.5*2
29		Motor	Lifting	KW	10	10	10
30		Controller			CURTIS	CURTIS	CURTIS
31		Control type			AC	AC	AC
32		Working pressure		Mpa	14.5	17.5	17.5
