● Category:
● Brand Name: Forklift
● Dimension (mm): 3650*1160*2040
● Operating Weight (kg): 3580
● Origin: China

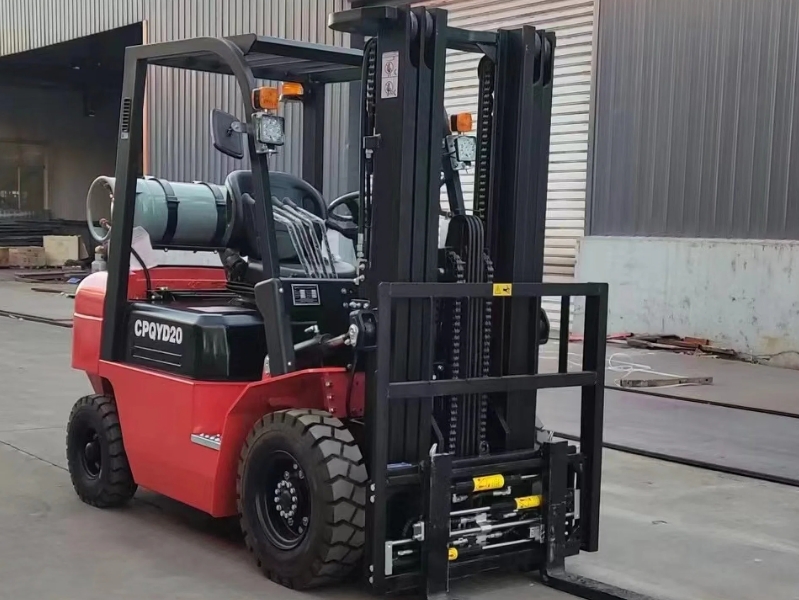

| Specification | CPYQD15 | CPYQD20 | |||||
| 1 | Characteristics | Fuel type | Diesel | Diesel | |||
| 2 | Load capacity | kg | 1500 | 2000 | |||
| 3 | Load center | mm | 500 | 500 | |||
| 4 | Lift height | mm | 3000 | 3000 | |||
| 5 | Full free lift height | mm | 100 | 135 | |||
| 6 | Fork dimension | mm | 920x100×35 | 1070×122×40 | |||
| 7 | Mast tilting angle | Front/Rear | Deg. | 6/12 | 6/12 | ||
| 8 | Min. turning radius | mm | 2060 | 2280 | |||
| 9 | Min. width of right angle stacking channel |
mm | 3940 | 4110 | |||
| 10 | Min. width of right angle channel |
mm | 1960 | 2010 | |||
| 11 | Groud clearance | mm | 110 | 120 | |||
| 12 | Overhead guard height | mm | 2050 | 2100 | |||
| 13 | Front overhang | mm | 478 | 498 | |||
| 14 | Performance | Max. travel speed | Full load | km/h | 14 | 18 | |
| 15 | Max. lift speed | Full load | mm/s | 500 | 500 | ||
| 16 | Max. traction power | Full load | KN | 17 | 17 | ||
| 17 | Max. gradeability | % | 20 | 20 | |||
| Dimensions | Total length | With fork | mm | 3410 | 3650 | ||
| 18 | Total length | Without fork | mm | 2490 | 2580 | ||
| 19 | Total width | mm | 1090 | 1160 | |||
| 20 | Mast extended height | mm | 4220 | 4220 | |||
| 21 | Mast lowered height | mm | 2040 | 2040 | |||
| 22 | Chassis | Tyres | Front | 6.50-10-10PR | 7.00-12-12PR | ||
| 23 | Rear | 5.00-8-10PR | 6.00-9-10PR | ||||
| 24 | Wheelbase | mm | 1400 | 1600 | |||
| 25 | Tread | Front/Rear | mm | 970/970 | 970/970 | ||
| 26 | Service weight | Kg | 3100 | 3580 | |||
| 27 | Drive | Battery | V/Ah | 12/100 | 12/100 | ||
| 28 | Motor | Model | Nissan K21 | Nissan K21 | |||
| 30 | Rated torque | N.m/r.p.m | 137.7/1800 | 137.7/1800 | |||
| 31 | Cylinders | 4 | 4 | ||||
| 32 | Displacement | L | 2.37 | 2.37 | |||
| 33 | Fuel tank capacity | L | 60 | 60 | |||
| 34 | Transmission | Hydraulic transmission | Hydraulic transmission | ||||
| 35 | Operating pressure | Mpa | 18.5 | 18.5 | |||
