Product classification
Product classification
● Category:
● Brand Name: Wheel loader
● Dimension (mm): 7460mm*2870mm*3220
● Operating Weight (kg): 17500
● Origin: China

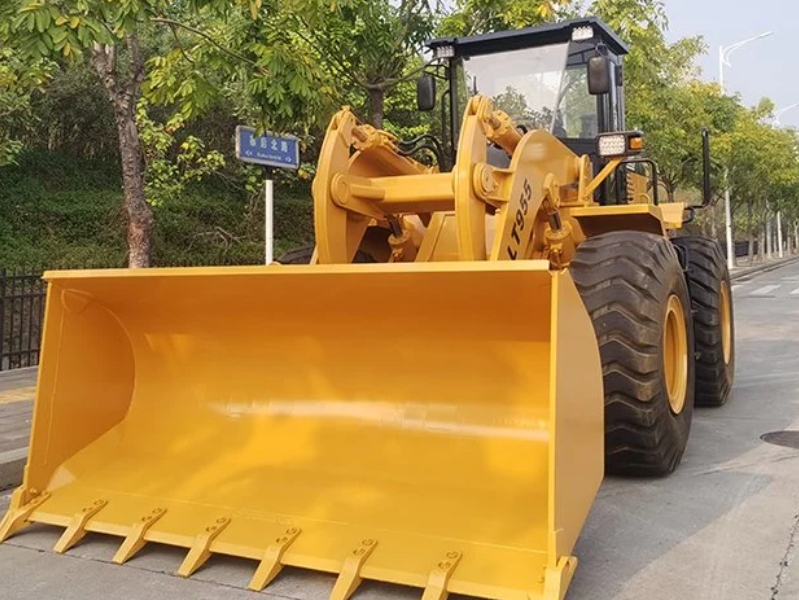

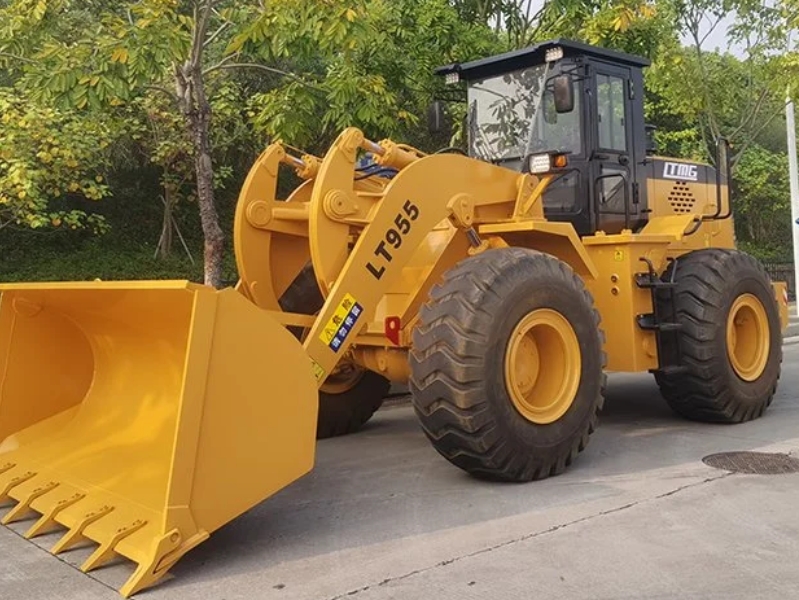

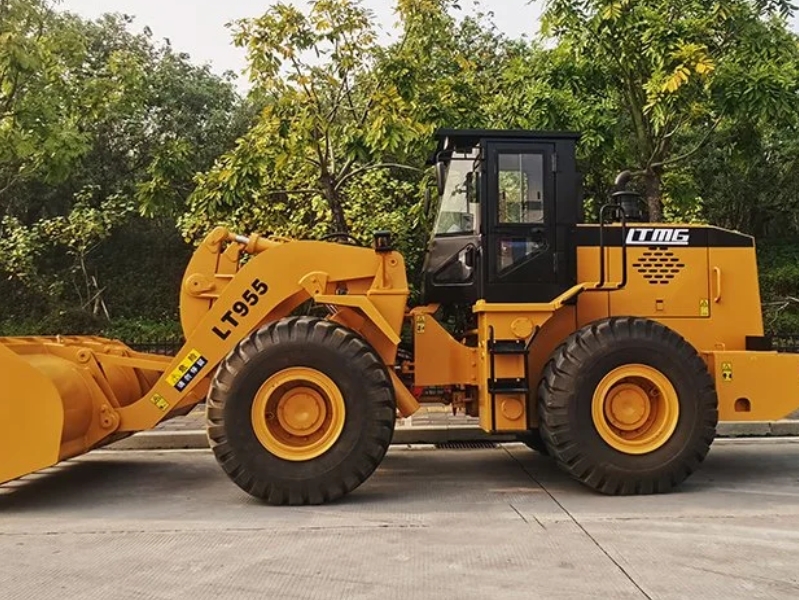

| Model | LT955 |
| Operating weight | 17500 kg |
| Rated load | 5, 000 kg |
| Bucket capacity | 3 m³ |
| Engine model | WEICHAI WD10G220E23 |
| Rated power | 162KW |
| Rated rotate speed | 2000 r/min |
| Max. Torque | 745.3N. M |
| Breakout force | 145KN |
| Forward I | 0-11.5km/h |
| Forward II | 0-38km/h |
| Reverse I | 0-16km/h |
| Grade ability | 28° |
| Overall length | 7460mm |
| Overall width | 2870mm |
| Overall height | 3220mm |
| Bucket width | 3000mm |
| Wheel base | 2820mm |
| Track base | 2260mm |
| Min. Ground clearance | 450mm |
| Max. Dumping height | 3100mm |
| Max. Dumping reach | 1310mm |
| Hydraulic Torque converter | Single stage, 4elements |
| Transmission | Planet-type |
| Raise time | ≤6.8s |
| Total | ≤12.5s |
| Tire type | 23.5-25 20PR |
